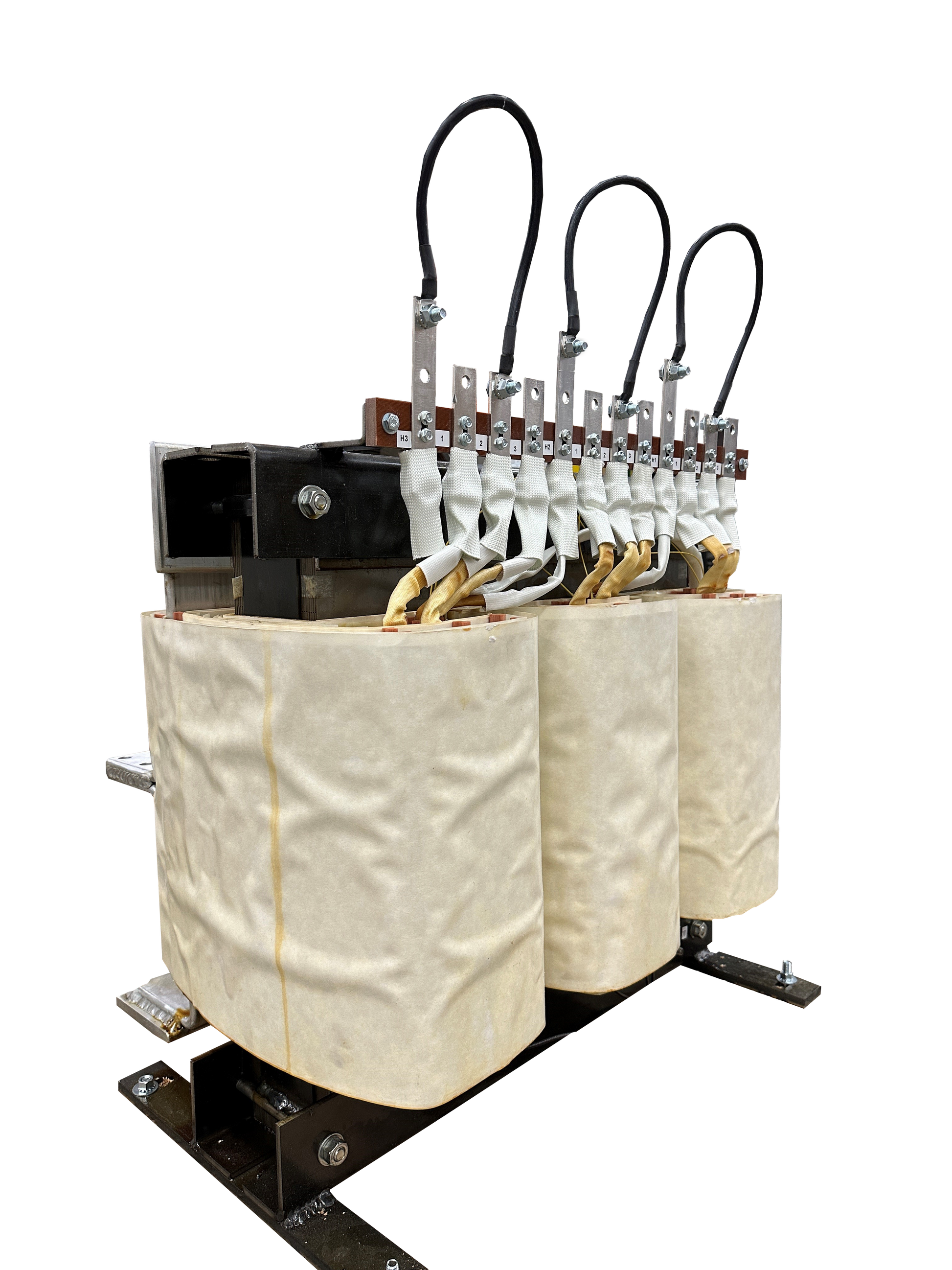

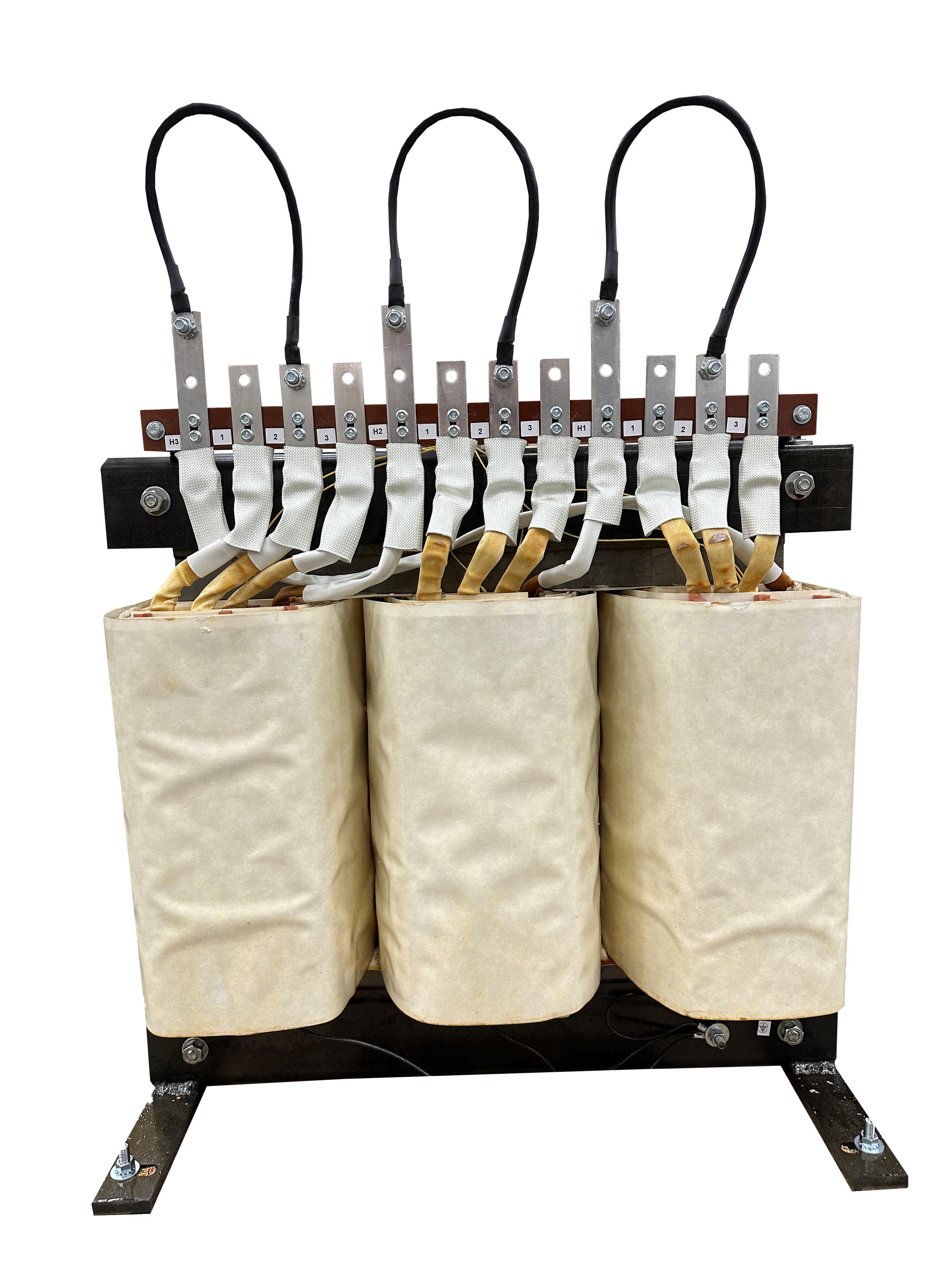

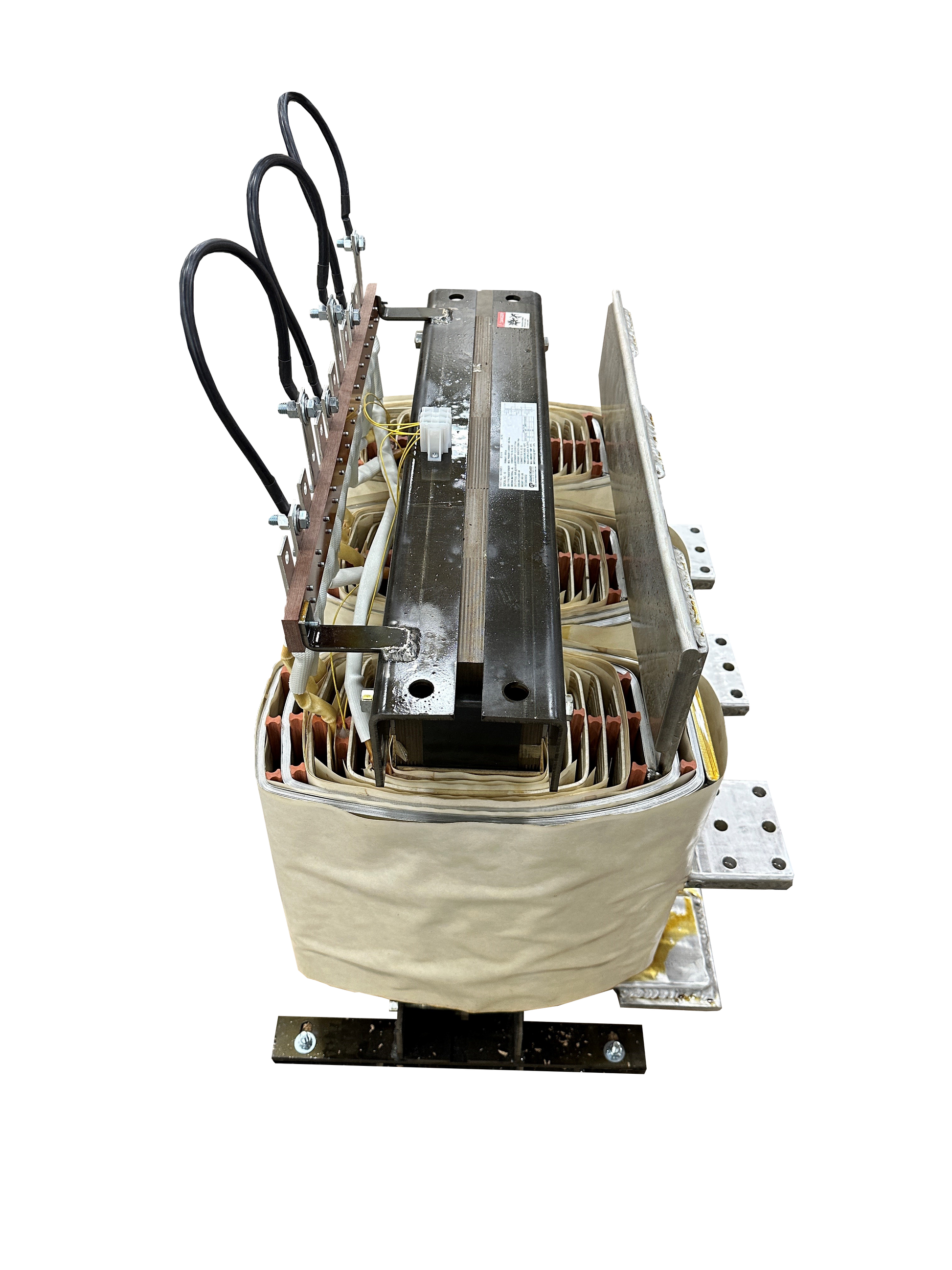

85kVA Air-Cooled Transformer

RoMan Part Number: 81508

• 85 kVA 3PH 60 HZ

• WINDING MATERIAL: AL

• DUTY CYCLE: 100% @ 85 KVA

• COOLING CLASS: AA

• WEIGHT: 960LBS

• PRIMARY: 480Vac

• MAX. PRIMARY CURRENT: 109.7 Aac

• CONNECT TO: H1, H2, H3

• SECONDARY: 12.5 /15/17.5 Vac

• CURRENT: 3926/3271.7/2804.3 Aac

• CONNECT TO: X1, X2, X3

• TEMPERATURE RISE: 150C

• UL INSULATION: 220 C

• MAX. AMBIENT TEMP: 40 C

• IMPEDANCE @190C: 7.24 %
