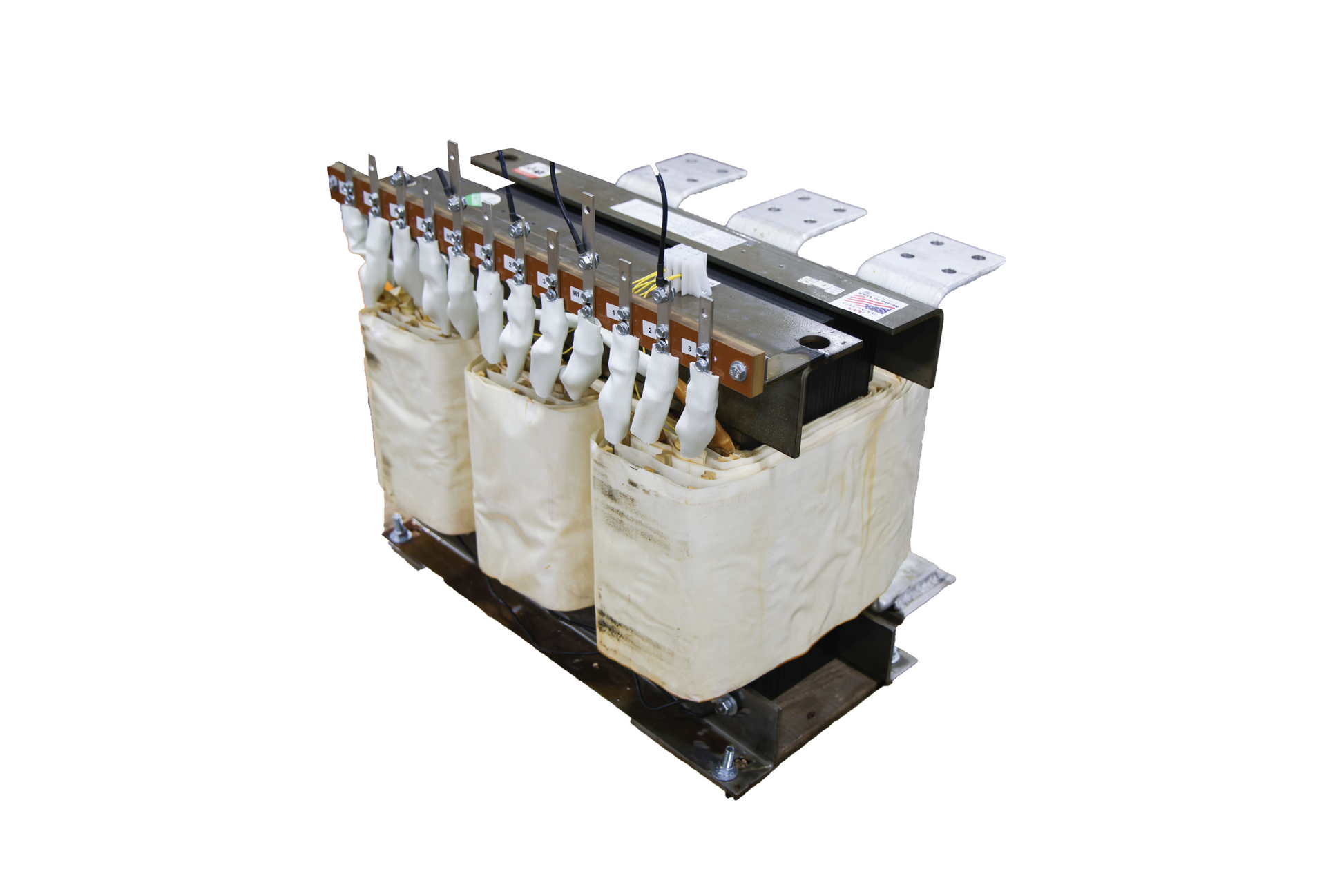

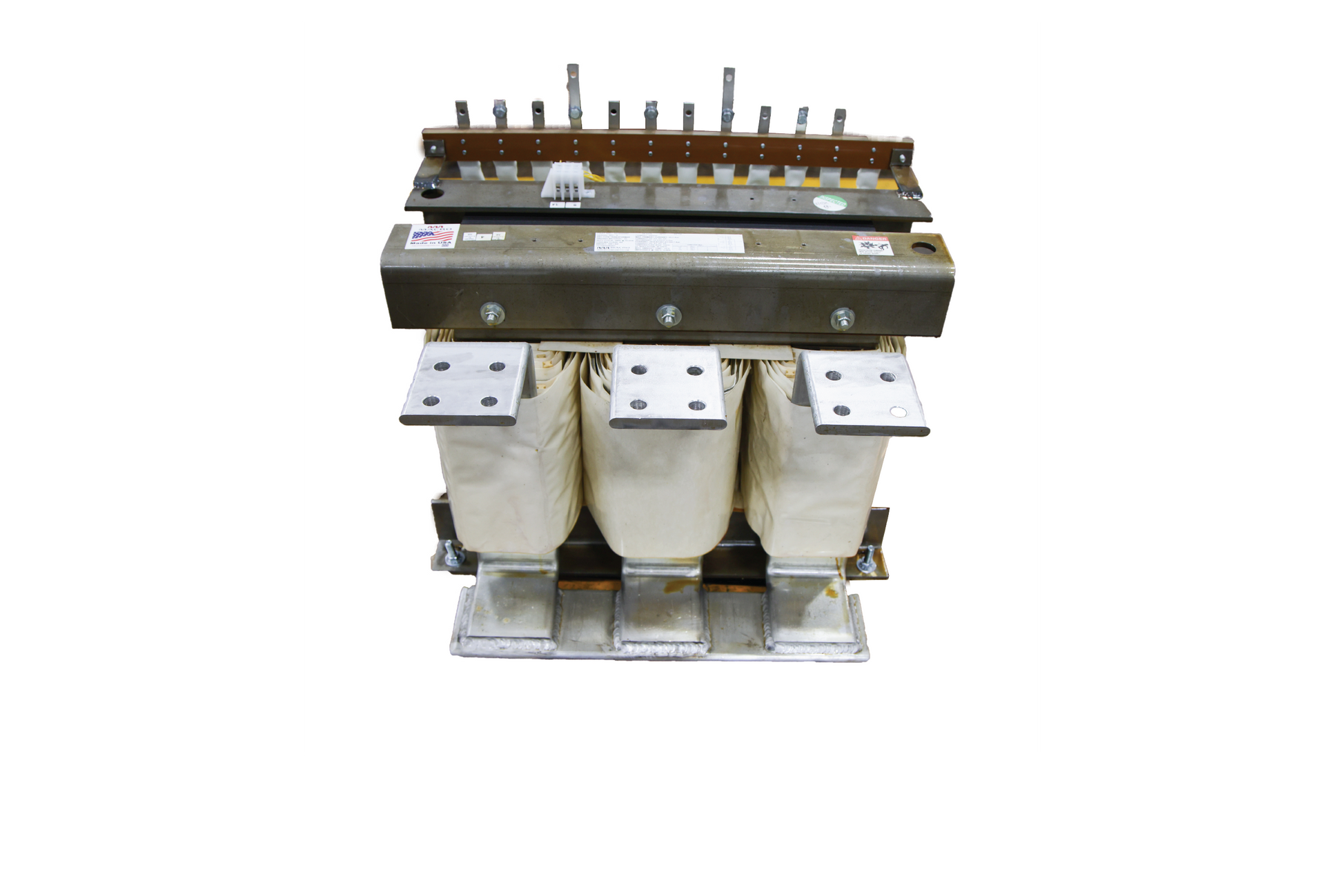

35kVA Air-Cooled Transformer

RoMan Part Number: 81509

• 35 kVA 3PH 60 Hz

• WINDING MATERIAL: AL

• DUTY CYCLE: 100% @ 35 KVA

• COOLING CLASS: AA

• WEIGHT: 560LBS

• PRIMARY: 480Vac

• MAX. PRIMARY CURRENT: 45.2 Aac

• CONNECT TO: H1, H2, H3

• SECONDARY: 12.5 /15/17.5 Vac

• CURRENT: 1616.6/1347.2/1154.7 Aac

• CONNECT TO: X1, X2, X3

• TEMPERATURE RISE: 150C

• UL INSULATION: 220C

• MAX. AMBIENT TEMP: 40C

• IMPEDANCE @190C: 4.09 %
